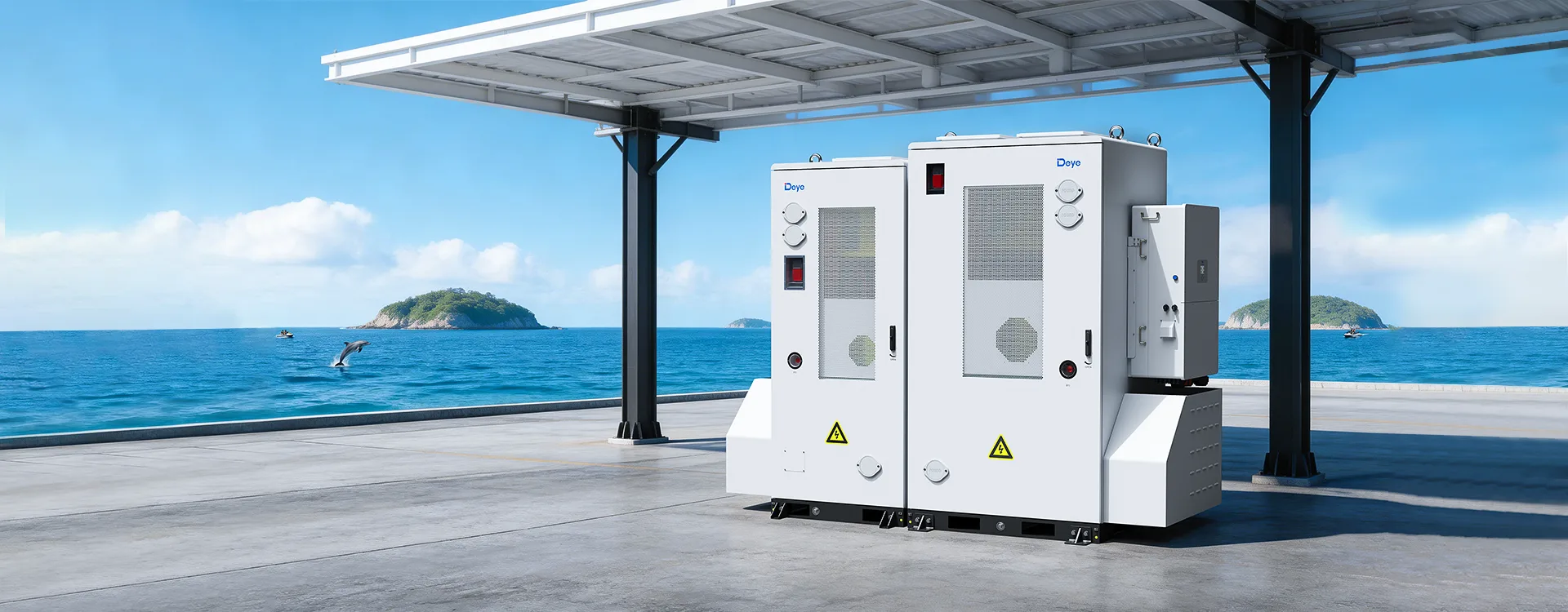

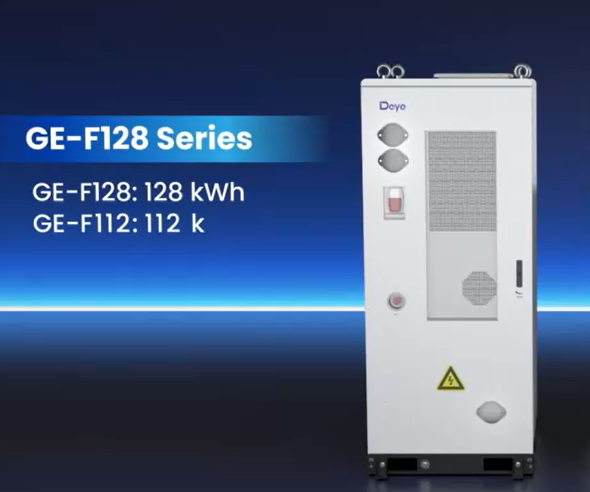

Name: Deye GE-F128-BC-2-A3 -128kWh Outdoor Battery Storage System
Brand: Deye
Availability: InStock

Technical Features

128.61 kWh High-Voltage Energy Storage: Provides substantial energy storage capacity for commercial and industrial solar and backup power applications.
LiFePO₄ (LFP) Battery Chemistry: Offers high thermal stability, safety, long service life and reliable performance.
High-Voltage Architecture: 409.6V nominal system voltage with an operating range of 320–467.2Vdc.
64 kW Rated DC Power: Suitable for high-power commercial and industrial energy storage applications.
314 Ah Battery Modules: Built with eight high-capacity battery modules connected in series.
High Continuous Current Capability: Supports up to 180A continuous charge/discharge current, with a 285A peak discharge capability for 15 seconds.
Long Cycle Life: ≥8,000 cycles under specified test conditions, supporting long-term energy storage applications.
Smart Air Cooling: Intelligent thermal management helps maintain battery operating temperatures and system performance.
Integrated Fire Safety System: Includes aerosol and water fire interfaces, CO gas detection, active exhaust and explosion venting.
Advanced Communication: CAN 2.0 and RS485 interfaces with Modbus communication for inverter and EMS integration.
IP55 Protection: Provides protection against dust and water ingress for demanding installation environments.
C4-M Anti-Corrosion Protection: Designed for improved durability in corrosive and challenging environmental conditions.
Wide Operating Temperature Range: Designed to operate from −30°C to +55°C.
Floor-Mounted Design: Compact integrated cabinet design simplifies installation for commercial and industrial projects.
High-Altitude Operation: Suitable for installations up to 3,000 metres above sea level.
10-Year Warranty: Designed for long-term commercial and industrial energy storage applications.
Multiple Applications: Suitable for solar energy storage, commercial and industrial BESS, backup power, diesel-generator fuel reduction, peak-load management and energy management.
International Certifications: Certified to relevant standards including UN38.3, CE, IEC 62619, IEC 62477, IEC 62933-5-2 and UL 9540A.

GE-F128-BC-2-A3 128.61kWh LFP Battery Energy Storage System

The GE-F128-BC-2-A3 is a high-capacity 128.61kWh Lithium Iron Phosphate (LiFePO₄/LFP) Battery Energy Storage System (BESS) designed for commercial and industrial solar power applications in Nigeria. It provides reliable energy storage for solar hybrid systems, commercial solar installations, backup power, peak-load management and energy cost reduction.

With a 409.6V nominal DC voltage and 64kW rated DC power, this high-voltage lithium battery system is suitable for integration with compatible commercial and industrial hybrid inverters and energy storage systems.

Key Specifications

Parameter

Specification

Model

GE-F128-BC-2-A3

Battery Chemistry

LiFePO₄ (LFP)

Battery Capacity

128.61 kWh

Usable Energy

128.61 kWh

Module Capacity

314 Ah

Number of Modules

Nominal Voltage

409.6 Vdc

Operating Voltage

320–467.2 Vdc

Rated DC Power

64 kW

Maximum Continuous Current

180 A

Peak Discharge Current

285 A / 15 seconds

Cooling

Smart Air Cooling

Fire Protection

Aerosol & water fire interface, CO detection, active exhaust and explosion venting

Communication

CAN / RS485

Operating Temperature

−30°C to +55°C

Protection Rating

IP55

Anti-Corrosion

C4-M

Installation

Floor-mounted

Dimensions

998 × 1,240 × 2,405.5 mm

Weight

Approx. 1,690 kg

Cycle Life

≥8,000 cycles

Warranty

10 years

Certifications

UN38.3, CE, IEC 62619, IEC 62477, IEC 62933-5-2, UL 9540A

Applications in Nigeria

The GE-F128-BC-2-A3 128kWh lithium battery can be deployed for:

Commercial and industrial solar energy storage

Solar hybrid power systems

Office buildings and commercial facilities

Hotels and hospitality facilities

Manufacturing and industrial facilities

Shopping centres and retail facilities

Hospitals and healthcare facilities

Data centres and critical infrastructure

Diesel generator fuel reduction

Backup power and energy resilience

Peak-load management

Solar energy shifting and load management

Commercial & Industrial (C&I) Battery Energy Storage Systems

128kWh Commercial Solar Battery

For businesses looking to reduce dependence on diesel generators and improve the reliability of solar power, the GE-F128-BC-2-A3 128.61kWh LFP battery storage system provides a high-voltage energy storage solution for commercial and industrial applications.

Its LiFePO₄ battery chemistry, 8,000+ cycle life, 10-year warranty, IP55 protection and integrated thermal and fire-safety systems make it suitable for demanding energy-storage installations.

Deye GE-F128-BC-2-A3 -128kWh Outdoor Battery Storage System
