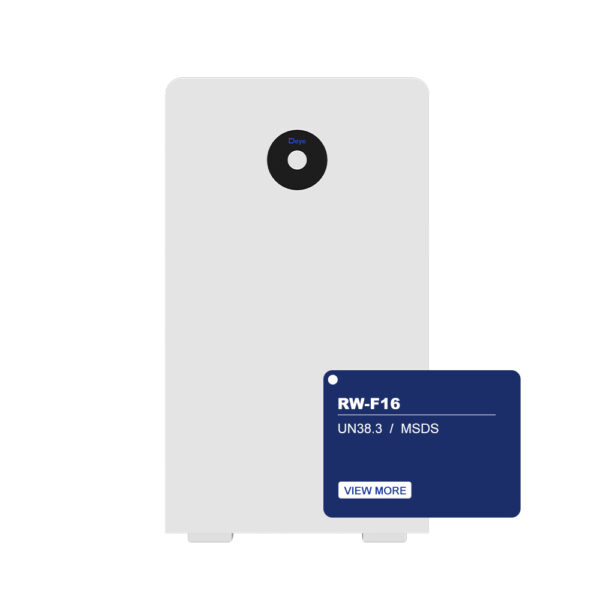

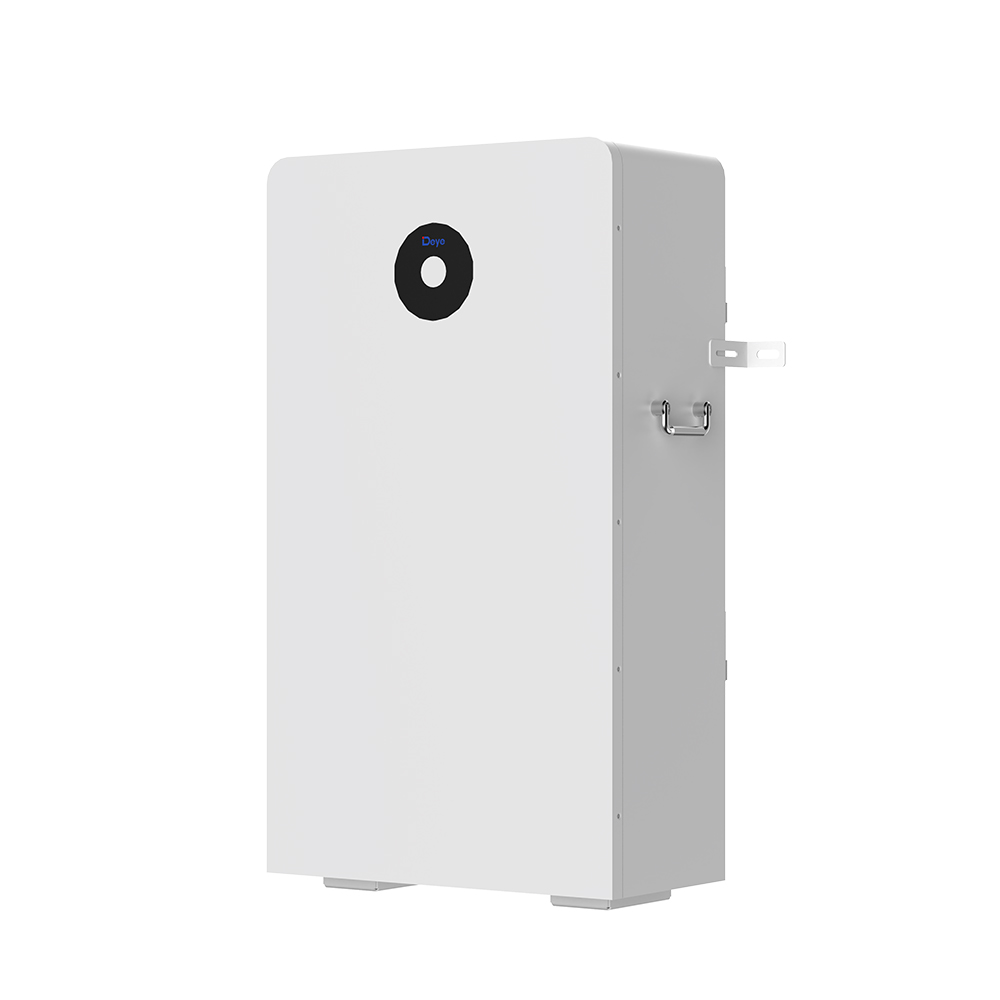

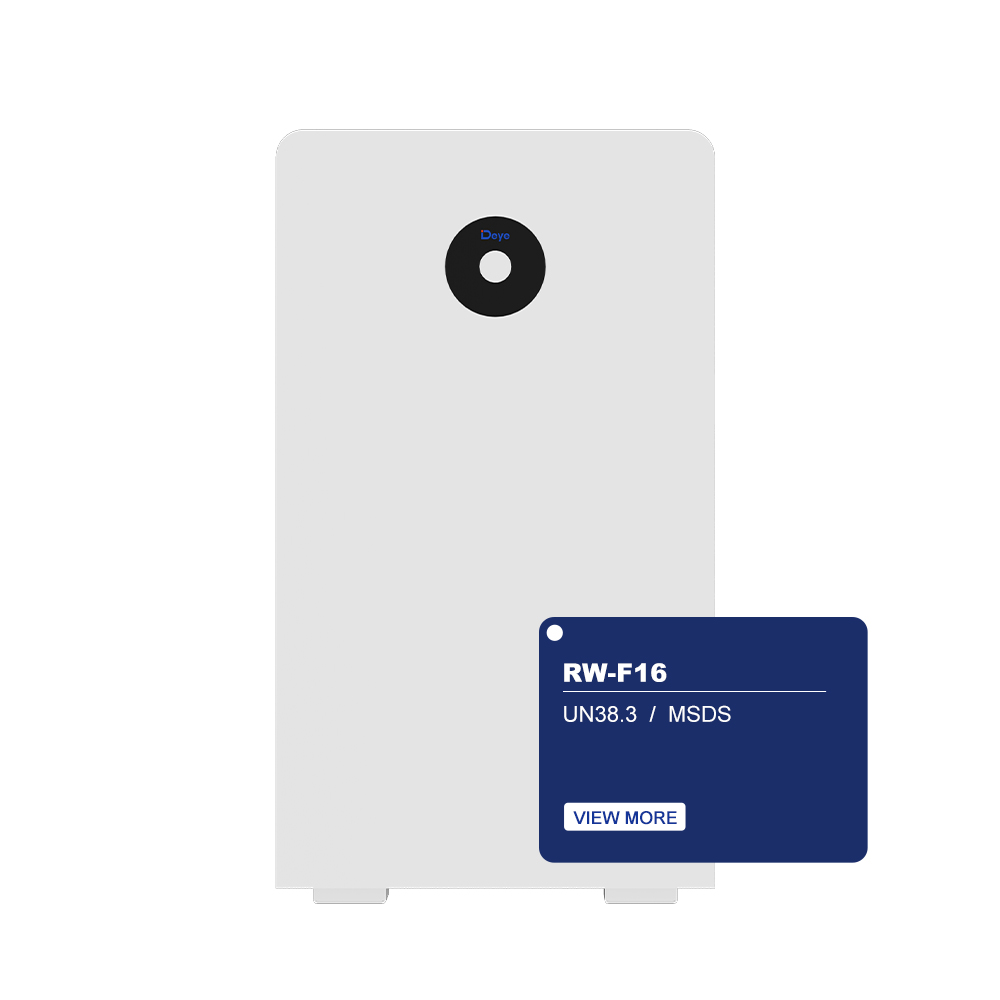

DEYE 16kWh Battery-RW-F16 (AS, AF, LATAM)

DEYE 16kWh Battery-RW-F16 (AS, AF, LATAM)

Product Description

The Deye RW-16 is a high-performance 14.4kWh Lithium Iron Phosphate (LiFePO₄) solar battery, perfect for home energy storage and backup in Nigeria. It offers safe, reliable, and long-lasting power, supports up to 32 units in parallel, and works with all inverter brands. Key features include remote monitoring, fast charging (160A), peak discharge (300A), wide temperature operation (-20°C to 55°C), and a 5-year warranty. Ideal for solar systems, off-grid homes, and backup power during outages.

Features:

  • Smart Battery Monitoring: Real-time performance updates with LED indicator

  • Expandable Energy Storage: Up to 512kWh capacity with multiple battery units

  • High Charging Power: Supports fast charging at 160A and 300A peak discharge for heavy loads

  • Wide Temperature Range: Reliable operation in Nigerian climates from -20°C to 55°C

  • Easy Installation: Flexible wall-mounted or floor-standing setup

  • Long-lasting Warranty: 5-year manufacturer warranty and technical support

  • Eco-friendly Design: Made with non-toxic and pollution-free materials

Compatible Deye Inverter Models:

  • Deye 7kW, 7.6kW, 8kW, 10kW Single Phase Inverters (SUN-7/7.6/8/10K-5G05LP1-EU-SM2)

  • Deye 12kW, 14kW, 16kW Single Phase Inverters (SUN-12/14/16K-SGO1LP1-EU)

  • Deye 5kW, 6kW, 8kW, 10kW, 12kW Three Phase Inverters (SUN-5/6/8/10/12K-SG04LP3-EU)

  • Deye 3kW, 4kW, 5kW, 6kW, 8kW, 10kW, 12kW Three Phase Inverters (SUN-3/4/5/6/8/10/12K-SG05LP3-EU-SM2)

  • Deye 14kW, 15kW, 16kW, 18kW, 20kW Three Phase Inverters (SUN-14/15/16/18/20K-SG05LP3-EU-SM2)

Download Datasheet
Download Manual

Add to quote
Category: Brand:

Introduction:
The Deye RW-16 Solar Lithium Battery is a reliable and efficient energy storage solution designed for homes and small businesses in Nigeria. Perfect for solar power systems, this battery ensures uninterrupted power supply, energy savings, and backup during grid outages

Key Features:

✅ Easy to Use & Maintain:

  • Automatic battery networking—no DIP switches required
  • Remote monitoring & updates through Deye inverter
  • External power supply support prevents battery shutdown
  • Direct recharge option after full discharge

✅ Flexible & Scalable:

  • Connect up to 32 battery units for larger energy storage
  • Built-in 10A constant-current charge protection
  • Compatible with all inverter brands (not just Deye)
  • Perfect for solar backup and off-grid home systems

✅ Safe & Long-lasting:

  • Uses safe Lithium Iron Phosphate (LiFePO₄) technology
  • Built-in circuit breaker for extra protection
  • Wide temperature range (-20°C to 55°C) suitable for Nigeria’s climate
  • Over 6000 charge/discharge cycles for long life

Technical Specifications:

  • Model: RW-F16
  • Battery Type: LiFePO₄ (Lithium Iron Phosphate)
  • Capacity: 314Ah
  • Voltage: 51.2V
  • Usable Energy: 14.4kWh (90% DOD)
  • Max Charge Current: 160A
  • Peak Discharge Current: 300A (10 sec)
  • Size: 480 x 830 x 235 mm
  • Weight: 122kg
  • Protection Rating: IP20 (for indoor use)
  • Temperature Range: Charge 0–55°C, Discharge -20–55°C
  • Mounting: Wall or floor installation
  • Warranty: 5 Years
  • Certifications: UN38.3, MSDS
